Slotted sleeve transmission fittings
Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.
Parker's compression style transmission fitting utilizes a specially designed slotted sleeve to help eliminate notch stress related to over torque. Transmission fittings are ideal for pressure protected pneumatic transmission applications. Transmission fittings are also available in a push-to-connect style reducing assembly time. The push-to-connect style has a staked in tube support and is D.O.T. approved. Electroless nickel plated bodies can be used with bio-diesel.
Use with the following Parker Parflex Division J844 tubing
- 1120 Nylon Air Brake Tubing
- 1320 Quantum Elastomeric Air Brake Tubing

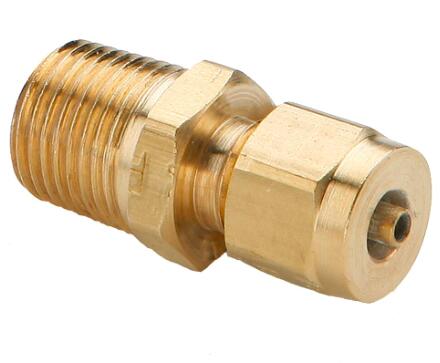

Slotted sleeve transmission fittings
Markets:
- Heavy duty truck
Features/Benefits:
- All brass construction
- D.O.T. approved with staked in tube support
- Compression & Push-to-Connect styles
- Slotted sleeve
- Use with J844 nylon tubing
- Electroless nickel plated bodies can be used with bio-diesel
Applications:
- Air shift transmissions
- Seat controls
- Dash controls
Custom configurations and sizes are available upon request. Contact us for additional information.
Technical Specifications
| Connection Type: |
Thread, Compression |
| Shape: |
90° Elbow, Connector, Nut, Sleeve and Union |
| Minimum Operating Temperature: |
-40 °F, -40 °C |
| Maximum Operating Temperature: |
220 °F, 104 °C |
| Maximum Operating Pressure: |
150 psi, 10 bar |
| Tube Material: |
SAE J844 Type A & B Nylon Tubing |
| Application: |
Air Shift Transmission, Seat Controls, Dash Controls |
| Materials of Construction: |
Brass |
| Nut Material: |
Brass |
| Sleeve Material: |
Brass |
| Collet Material: |
Brass |
| O-Ring Material: |
Nitrile |
| Connection 1 Size: |
Compression, Push-to-Connect |
| Connection 2 Tube Outside Diameter: |
5/32, 3/16 inch |
Slotted sleeve transmission fittings型号
| Part |
Style |
Shape |
Connection 1 Tube O.D. (inch) |
Connection 2 Thread Size (inch) |
Connection 2 Style |
| 269TF-2-2 |
Tube to Pipe |
90? Elbow |
1/8 |
1/8 |
Male Pipe |
| 269TF-5/32-2 |
Tube to Pipe |
90? Elbow |
5/32 |
1/8 |
Male Pipe |
| 60TF-2 |
Tube |
Sleeve |
1/8 |
na |
na |
| 60TF-5/32 |
Tube |
Sleeve |
5/32 |
na |
na |
| 61TF-2 |
Tube |
Nut |
1/8 |
na |
na |
| 61TF-5/32 |
Tube |
Nut |
5/32 |
na |
na |
| 62TF-2 |
Tube to tube |
Union |
1/8 |
1/8 |
Compression |
| 62TF-5/32 |
Tube to tube |
Union |
5/32 |
5/32 |
Compression |
| 68TF-2-1 |
Tube to Pipe |
Connector |
1/8 |
1/16 |
Male Pipe |
| 68TF-2-2 |
Tube to Pipe |
Connector |
1/8 |
1/8 |
Male Pipe |
| 68TF-5/32-1 |
Tube to Pipe |
Connector |
5/32 |
1/16 |
Male Pipe |
| 68TF-5/32-2 |
Tube to Pipe |
Connector |
5/32 |
1/8 |
Male Pipe |
|
