Transmission Fittings, Push-to-Connect

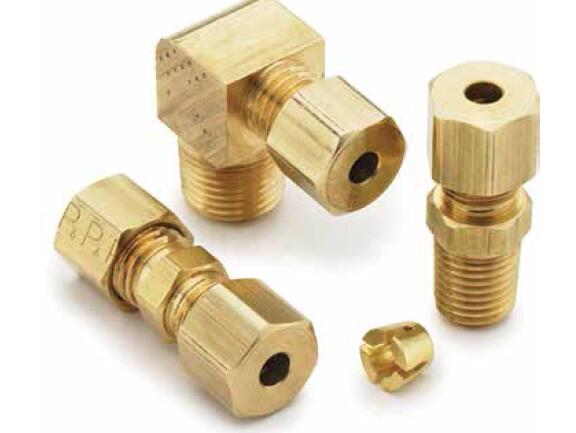

Parker's Transmission fittings, push-to-connect style are designed to reduce assembly time and are ideal for pressure protected pneumatic transmission applications.
Transmission fittings are ideal for pressure protected pneumatic transmission applications. Push-to-Connect style transmission fittings reduce assembly time. The push-to-connect style has a staked in tube support and is D.O.T. approved. Electroless nickel plated bodies can be used with bio-diesel.
Use SAE J844 Type A & B nylon tubing with transmission fittings.
Transmission Fittings, Push-to-Connect
Markets:
- Heavy duty truck
Features/Benefits:
- All brass construction
- D.O.T. approved with staked in tube support
- Compression & Push-to-Connect styles
- Slotted sleeve
- Use with J844 nylon tubing
- Electroless nickel plated bodies can be used with bio-diesel
Applications:
- Air shift transmissions
- Seat controls
- Dash controls
Technical Specifications
| Connection Type: |
Push-to-Connect, Plug-In |
| Shape: |
90° Elbow, Branch Tee,. Connector, Run Tee, Union and Tee |
| Minimum Operating Temperature: |
-40 °F, -40 °C |
| Maximum Operating Temperature: |
220 °F, 104 °C |
| Maximum Operating Pressure: |
150 psi, 10 bar |
| Tube Material: |
SAE J844 Type A & B Nylon Tubing |
| Application: |
Air Shift Transmission, Seat Controls, Dash Controls |
| Materials of Construction: |
Brass |
| Collet Material: |
Brass |
| O-Ring Material: |
Nitrile |
| Connection 1 Size: |
Push-to-Connect |
Transmission Fittings, Push-to-Connect型号
| Part |
Style |
Shape |
Connection 1 Tube O.D. (inch) |
Connection 2 Tube O.D. (inch) |
Connection 2 Thread Size (inch) |
Connection 2 Style |
| 164PTC-3 |
Tube to tube |
Tee |
3/16 |
3/16 |
na |
Push-to-Connect |
| 164PTC-5/32 |
Tube to tube |
Tee |
5/32 |
5/32 |
na |
Push-to-Connect |
| 165PTC-3 |
Tube to tube |
90° Elbow |
3/16 |
3/16 |
na |
Push-to-Connect |
| 165PTC-5/32 |
Tube to tube |
90° Elbow |
5/32 |
5/32 |
na |
Push-to-Connect |
| 169PTCNS-12-8 |
Tube to Pipe |
90° Elbow |
3/4 |
na |
1/2 |
Male Pipe |
| 169PTCNS-3-2 |
Tube to Pipe |
90° Elbow |
3/16 |
na |
1/8 |
Male Pipe |
| 169PTCNS-3-4 |
Tube to Pipe |
90° Elbow |
3/16 |
na |
1/4 |
Male Pipe |
| 169PTCNS-5/32-1 |
Tube to Pipe |
90° Elbow |
5/32 |
na |
1/16 |
Male Pipe |
| 169PTCNS-5/32-2 |
Tube to Pipe |
90° Elbow |
5/32 |
na |
1/8 |
Male Pipe |
| 169PTCNS-5/32-4 |
Tube to Pipe |
90° Elbow |
5/32 |
na |
1/4 |
Male Pipe |
| 171PTCNS-3-2 |
Tube to Pipe |
Run Tee |
3/16 |
na |
1/8 |
Male Pipe |
| 171PTCNS-5/32-2 |
Tube to Pipe |
Run Tee |
5/32 |
na |
1/8 |
Male Pipe |
| 171PTCNS-5/32-4 |
Tube to Pipe |
Run Tee |
5/32 |
na |
1/4 |
Male Pipe |
| 172PTCNS-3-2 |
Tube to Pipe |
Branch Tee |
3/16 |
na |
1/8 |
Male Pipe |
| 172PTCNS-5/32-2 |
Tube to Pipe |
Branch Tee |
5/32 |
na |
1/8 |
Male Pipe |
| 172PTCNS-5/32-4 |
Tube to Pipe |
Branch Tee |
5/32 |
na |
1/4 |
Male Pipe |
| 62PTC-3 |
Tube to tube |
Union |
3/16 |
3/16 |
na |
Push-to-Connect |
| 62PTC-5/32 |
Tube to tube |
Union |
5/32 |
5/32 |
na |
Push-to-Connect |
| 66PTC-3-2 |
Tube to Female Pipe |
Connector |
3/16 |
na |
1/8 |
Female Pipe |
| 66PTC-5/32-2 |
Tube to Female Pipe |
Connector |
5/32 |
na |
1/8 |
Female Pipe |
| 66PTC-5/32-4 |
Tube to Female Pipe |
Connector |
5/32 |
na |
1/4 |
Female Pipe |
| 68PTC-3-1 |
Tube to Pipe |
Connector |
3/16 |
na |
1/16 |
Male Pipe |
| 68PTC-3-2 |
Tube to Pipe |
Connector |
3/16 |
na |
1/8 |
Male Pipe |
| 68PTC-3-4 |
Tube to Pipe |
Connector |
3/16 |
na |
1/4 |
Male Pipe |
| 68PTC-5/32-1 |
Tube to Pipe |
Connector |
5/32 |
na |
1/16 |
Male Pipe |
| 68PTC-5/32-2 |
Tube to Pipe |
Connector |
5/32 |
na |
1/8 |
Male Pipe |
| 68PTC-5/32-4 |
Tube to Pipe |
Connector |
5/32 |
na |
1/4 |
Male Pipe |
|
