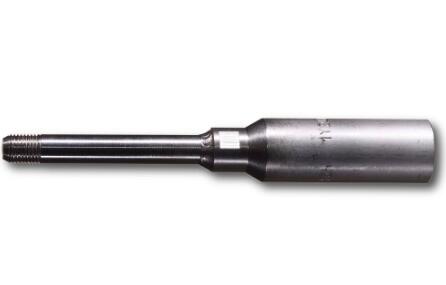

Crimped Thermoplastic Oil & Gas Hose Fittings, UX Series
Parker UX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient.
Parker UX Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient.
Markets:
- Oil & Gas
- Marine
Feature/Benefits:
- The fitting series perfectly matches the respective thermoplastic hose types for optimal product functionality, reliability and service life.
- Made with high quality materials for corrosion resistance, and improved system availability due to less down times.
- Multiple sizes and connections are available for the right connection for your application.
Applications:
- for use with long subsea umbilical hose
- for thermoplastic Cemjec hoses
- Suitable for hose types with working pressure from 103.5 up to 138 MPa (15.000 up to 20.000 psi)
Technical Specifications
| Length: |
86, 93,5, 131,5, 125,4, 151 mm, 3,39, 3,68, 5,18, 4,94, 5,94 inch |
| Maximum Operating Pressure: |
15000, 20000 psi |
| Shape: |
Straight, Straight |
Crimped Thermoplastic Oil & Gas Hose Fittings, UX Series 型号
| Part |
Maximum Working Pressure (MPa) |
Style |
Fitting Type |
Connection Thread Size (inch) |
Material |

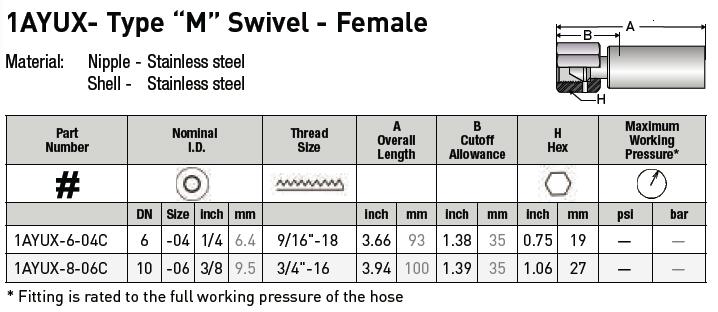

| 1AYUX-6-04C |
103.5 |
Type ?M? female swivel fitting |
AY |
9/16 - 18UNF |
Super Duplex Material 1.4462 |
| 1AYUX-8-06C |
103.5 |
Type ?M? female swivel fitting |
AY |
3/4 - 16UNF |
Stainless Steel |

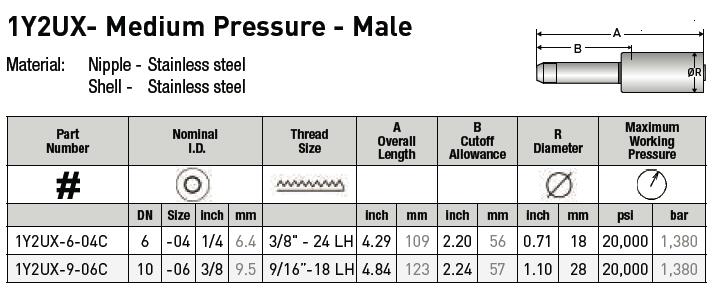

| 1Y2UX-6-04-INC625 |
138 |
Medium pressure tube nipple |
Y2 |
3/8 - 24UNF-LH |
Inconel 625 |
| 1Y2UX-6-04C |
138 |
Medium pressure tube nipple |
Y2 |
3/8 - 24UNF-LH |
Stainless Steel |
| 1Y2UX-6-05-INC625 |
138 |
Medium pressure tube nipple |
Y2 |
3/8 - 24UNF-LH |
Super Duplex Material 1.4462 |
| 1Y2UX-9-06C |
138 |
Medium pressure tube nipple |
Y2 |
9/16 - 18UNF-LH |
Stainless Steel |
|
