Hydraulics, Inc. 旋转接头 修理包 SWIVELS SEAL KITS

SWIVELS, COUPLINGS, AND CONTROLS FOR HYDRAULIC SYSTEMS

SWIVELS;S-Inline,HS-Heavy Duty Inline,9S-90° Swivel,9SS-Dual Plane Swivel,18S-Parallel Plane Swivel,Flange Swivels

SEAL KITS | SWIVEL SEAL KITS



特点和优势Features and Advantages

BLANK BUNA-N
-3 FLUOROCARBON (VITON?)
-7 ETHYLENE PROPYLENE (EPR)
-9 NEOPRENE
OTHERS ON REQUEST

NOTE: SPECIAL SEALS


若要获得含有非标准丁腈橡胶(buna-n)密封化合物的套件,用表A中适用的密封材料代码作为替换密封套件零件号的后缀。

To obtain kits with seal compounds other than standard buna-n, suffix the replacement seal kit part number with the applicable seal material code number from Table A.



示例:对于氯丁橡胶密封,S6-1套件将变为S6-1-9。Example: S6-1 kit would become S6-1-9 for neoprene seal.



S-SERIES INCLUDES DUST AND FLUID SEALS WITH BACK UP RINGS, BALLS, AND BALL PLUG
BODY SIZE S6 S8 S12 S14 S16 S20 S24 S32
KIT NO. S6-1 S8-1 S12-1 S14-1 S16-1 S20-1 S24-1 S32-1
HS-SERIES INCLUDES DUST AND FLUID SEALS WITH BACK UP RINGS, BALLS, AND BALL PLUGS
BODY SIZE HS6 HS8 HS12 HS16 HS20 HS24 S32
KIT NO. HS6-1 HS8-1 HS12-1 HS16-1 HS20-1 HS24-1 HS32-1
9S-SERIES INCLUDES DUST AND FLUID SEALS WITH BACK UP RINGS
BODY SIZE 9S4 9S6 9S8 9S12 9S16 9S20 9S24 9S32
KIT NO. 9S4-1 9S6-1 9S8-1 9S12-1 9S16-1 9S20-1 9S24-1 9S32-1
9SS-SERIES INCLUDES DUST AND FLUID SEALS WITH BACK UP RINGS, BALLS AND BALL PLUG
BODY SIZE 9SS6 9SS8 9SS12 9SS16 9SS20 9SS24
KIT NO. 9SS6-1 9SS8-1 9SS12-1 9SS16-1 9SS20-1 9SS24-1
18S-SERIES INCLUDES DUST AND FLUID SEALS WITH BACK UP RINGS
BODY SIZE 18S6 18S8 18S12 18S16 18S20 18S24 18S32
KIT NO. 9S6-1 9S8-1 9S12-1 9S16-1 9S20-1 9S24-1 9S32-1
93S-SERIES INCLUDES DUST AND FLUID SEALS AND RETAINING PLATE SCREWS
BODY SIZE 93S12 93S16 93S20 93S24 93S32 93S40
KIT NO. 93S12-1 93S16-1 93S20-1 93S24-1 93S32-1 93S40-1
96S-SERIES INCLUDES DUST AND FLUID SEALS AND RETAINING PLATE SCREWS
BODY SIZE 96S8 96S12 96S16 96S20 96S24 96S32
KIT NO. 96S8-1 96S12-1 96S16-1 96S20-1 96S24-1 96S32-1



This table is for S and 9SS Grease Zerk.



TABLE B
BODY SIZE 6 8 12 14 16 20 24 32
"L" DIA 2.21  2.46  2.46  2.59  2.96  3.46  3.96  4.71
56.1mm 62.5mm 62.5mm 65.8mm 75.2mm 87.9mm 100.6mm 119.6mm

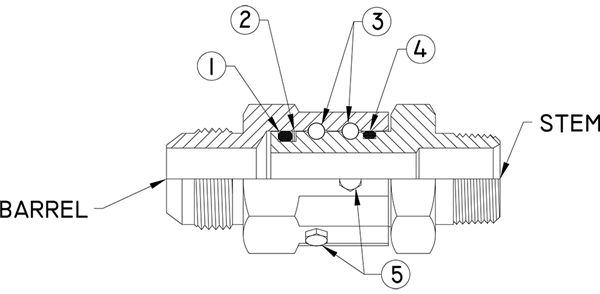

SEAL KITS | SWIVEL SEAL KITS | S-INLINE SWIVEL SEAL KITS
S-INLINE SWIVEL SEAL KITS





Part Number Body Size 1 2 3 4 5 6
S6-1 S6 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
S8-1 S8 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
S12-1 S12 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
S14-1 S14 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
S16-1 S16 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
S20-1 S20 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
S24-1 S24 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
S32-1 S32 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA



SEAL KITS | SWIVEL SEAL KITS | HS-HEAVY DUTY INLINE SWIVEL SEAL KITS
HS-HEAVY DUTY INLINE SWIVEL SEAL KITS





Part Number Body Size 1 2 3 4 5 6
HS6-1 HS6 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
HS8-1 HS8 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
HS12-1 HS12 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
HS16-1 HS16 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
HS20-1 HS20 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
HS24-1 HS24 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA
HS32-1 HS32 Fluid Seal Back-up Ring Retainer Balls Dust Seal Ball Plug NA

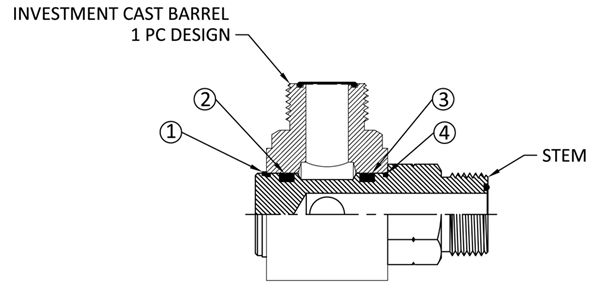

SEAL KITS | SWIVEL SEAL KITS | 9S-90° SWIVEL SEAL KITS
9S-90° SWIVEL SEAL KITS





Part Number Body Size 1 2 3 4 5 6
9S4-1 9S4 Retaining Ring Fluid Seal (Qty 2) Backup Rings (Qty 2) Dust Seal (Qty 2) NA NA
9S6-1 9S6 Retaining Ring Fluid Seal (Qty 2) Backup Rings (Qty 2) Dust Seal (Qty 2) NA NA
9S8-1 9S8 Retaining Ring Fluid Seal (Qty 2) Backup Rings (Qty 2) Dust Seal (Qty 2) NA NA
9S12-1 9S12 Retaining Ring Fluid Seal (Qty 2) Backup Rings (Qty 2) Dust Seal (Qty 2) NA NA
9S16-1 9S16 Retaining Ring Fluid Seal (Qty 2) Backup Rings (Qty 2) Dust Seal (Qty 2) NA NA
9S20-1 9S20 Retaining Ring Fluid Seal (Qty 2) Backup Rings (Qty 2) Dust Seal (Qty 2) NA NA
9S24-1 9S24 Retaining Ring Fluid Seal (Qty 2) Backup Rings (Qty 2) Dust Seal (Qty 2) NA NA
9S32-1 9S32 Retaining Ring Fluid Seal (Qty 2) Backup Rings (Qty 2) Dust Seal (Qty 2) NA NA

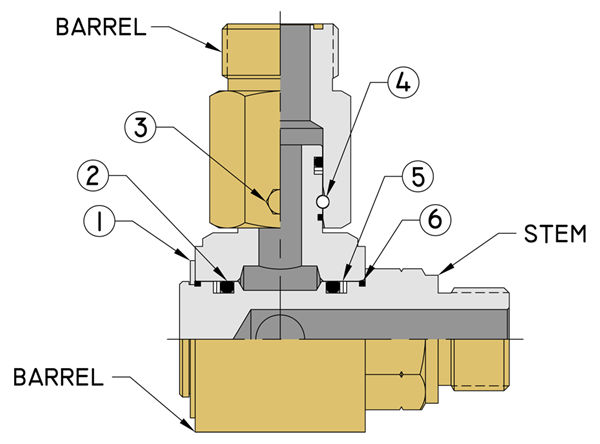

SEAL KITS | SWIVEL SEAL KITS | 9SS-DUAL PLANE SWIVEL SEAL KITS
9SS-DUAL PLANE SWIVEL SEAL KITS





Part Number Body Size 1 2 3 4 5 6
9SS6-1 9SS6 Retaining Ring Fluid Seal (Qty 3) Ball Plug Retainer Balls Back-up Ring (Qty 3) Dust Seal (Qty 3)
9SS8-1 9SS8 Retaining Ring Fluid Seal (Qty 3) Ball Plug Retainer Balls Back-up Ring (Qty 3) Dust Seal (Qty 3)
9SS12-1 9SS12 Retaining Ring Fluid Seal (Qty 3) Ball Plug Retainer Balls Back-up Ring (Qty 3) Dust Seal (Qty 3)
9SS16-1 9SS16 Retaining Ring Fluid Seal (Qty 3) Ball Plug Retainer Balls Back-up Ring (Qty 3) Dust Seal (Qty 3)
9SS20-1 9SS20 Retaining Ring Fluid Seal (Qty 3) Ball Plug Retainer Balls Back-up Ring (Qty 3) Dust Seal (Qty 3)
9SS24-1 9SS24 Retaining Ring Fluid Seal (Qty 3) Ball Plug Retainer Balls Back-up Ring (Qty 3) Dust Seal (Qty 3)



SEAL KITS | SWIVEL SEAL KITS | 18S-180° SWIVEL SEAL KITS
18S-180° SWIVEL SEAL KITS





Part Number Body Size 1 2 3 4 5 6
9S6-1 18S6 Retaining Ring Back-up Ring (Qty 2) Fluid Seal (Qty 2) Dust Seal (Qty 2) NA NA
9S8-1 18S8 Retaining Ring Back-up Ring (Qty 2) Fluid Seal (Qty 2) Dust Seal (Qty 2) NA NA
9S12-1 18S12 Retaining Ring Back-up Ring (Qty 2) Fluid Seal (Qty 2) Dust Seal (Qty 2) NA NA
9S16-1 18S16 Retaining Ring Back-up Ring (Qty 2) Fluid Seal (Qty 2) Dust Seal (Qty 2) NA NA
9S20-1 18S20 Retaining Ring Back-up Ring (Qty 2) Fluid Seal (Qty 2) Dust Seal (Qty 2) NA NA
9S24-1 18S24 Retaining Ring Back-up Ring (Qty 2) Fluid Seal (Qty 2) Dust Seal (Qty 2) NA NA
9S32-1 18S32 Retaining Ring Back-up Ring (Qty 2) Fluid Seal (Qty 2) Dust Seal (Qty 2) NA NA

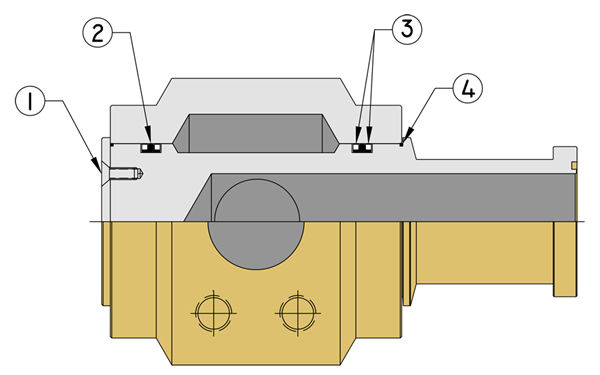

SEAL KITS | SWIVEL SEAL KITS | 93S-FLANGED SWIVEL CODE 61 SEAL KITS
93S-FLANGED SWIVEL CODE 61 SEAL KITS





Part Number Body Size 1 2 3 4 5 6
93S12-1 93S12 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
93S16-1 93S16 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
93S20-1 93S20 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
93S24-1 93S24 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
93S32-1 93S32 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
93S40-1 93S40 Retainer Screw (Qty 2) Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA



SEAL KITS | SWIVEL SEAL KITS | 96S-FLANGED SWIVEL CODE 62 SEAL KITS
96S-FLANGED SWIVEL CODE 62 SEAL KITS





Part Number Body Size 1 2 3 4 5 6
96S8-1 96S8 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
96S12-1 96S12 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
96S16-1 96S16 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
96S20-1 96S20 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
96S24-1 96S24 Retainer Screw Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
96S32-1 96S32 Retainer Screw (Qty 2) Fluid Seal (Qty 2) Backup Rings (Qty 4) Dust Seal (Qty 2) NA NA
