McDaniel Controls, Inc. Process Gauges工艺仪表
McDaniel工艺仪表Process Gauges
工艺仪表-当耐久性很重要时，设计用于满足并超过工艺、石化和电力工业的严格和苛刻要求Process Gauges - When Durability Matters, designed to meet and exceed the rigorous and harsh requirements of the process, petrochemical, and power industry
特征Features:
安全性是一个主要考虑因素，实心正面和铰链式吹出背面，turrent风格的情况下，4毫米厚的夹层安全玻璃镜头。设计可承受300%的满量程压力而不会导致弹簧管破裂；130%的满量程压力并保持精确耐用，脉冲/振动保护，维修功能，保修，可填充外壳Safety a major consideration, Solid front and hinged blow-out back, turrent style case, 4 mm thick laminated safety glass lens. Designed to withstand 300% full-scale pressure without bourdon tube rupture; 130% full scale pressure and stay accurate Durable , Pulse/Vibration Protection , Repair Feature , Warranty , Fillable case , More Detail , Last Word
McDaniel Controls, Inc. Process Gauges工艺仪表资料下载
模型
MODEL |
刻度盘大小
DIAL SIZE |
可填充
FILLABLE |
连接
CONNECTION |
案例
CASE |
内部构件
INTERNALS |
特征
FEATURES |
| MPB/SA |
4 1/2 inch (130mm) |
Yes |
Options (1/4) |
Fiberglass reinforced thermoplastic |
316 Stainless Steel |
SF/BOF. Elastomer |
| MPB/SC |
4 1/2 inch (130mm) |
Yes |
Options (1/2) |
Fiberglass reinforced thermoplastic |
316 Stainless Steel |
SF/BOB. Elastomer |

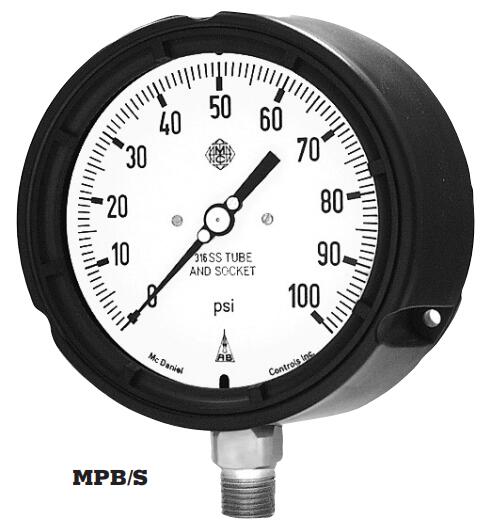

Model MPB/SA
Process Gauges 4 1/2" Dial Size - Liquid Fillable - 1/4" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 1/2 inch (130mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/4" NPT or Metric |
| 案例Case: |
Fiberglass reinforced thermoplastic |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless steel (C Form 600 PSI & Below). (Spiral 800 PSI & Above). |
| 准确度Accuracy: |
0.5 % full scale to ASME B40.1 standard (Grade 2A) |
| 范围Ranges: |
Vacuum,Rec.,Compound,0-20,000 psi |
| 安装Mount: |
Standard Bottom Connection |
| 比例尺Scale: |
B=psi/Bar(dual scale), K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
Plastic lens, monel internals, Stainless Steel Tags |
| 填充选择Choice(s) of filling: |
GF=Glycerin, SF=Silicone |
Model MPB/SA
Process Gauges 4 1/2" Dial Size - Liquid Fillable - 1/2" NPT
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
4 1/2 inch (130mm) |
| 可填充：Fillable: |
Yes |
| 连接Connection: |
1/2" NPT or Metric |
| 案例Case: |
Fiberglass reinforced thermoplastic |
| 内部构件Internals: |
316 Stainless Steel |
| Wetted parts: |
316 Stainless steel (C Form 600 PSI & Below). (Spiral 800 PSI & Above). |
| 准确度Accuracy: |
0.5 % full scale to ASME B40.1 standard (Grade 2A) |
| 范围Ranges: |
Vacuum,Rec.,Compound,0-20,000 psi |
| 安装Mount: |
Standard Bottom Connection |
| 比例尺Scale: |
B=psi/Bar(dual scale), K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
Plastic Lens, monel internals, Stainless Steel Tags |
| 填充选择Choice(s) of filling: |
GF=Glycerin, SF=Silicone |
|
