McDaniel Controls, Inc. Subsea Gauges海底仪表

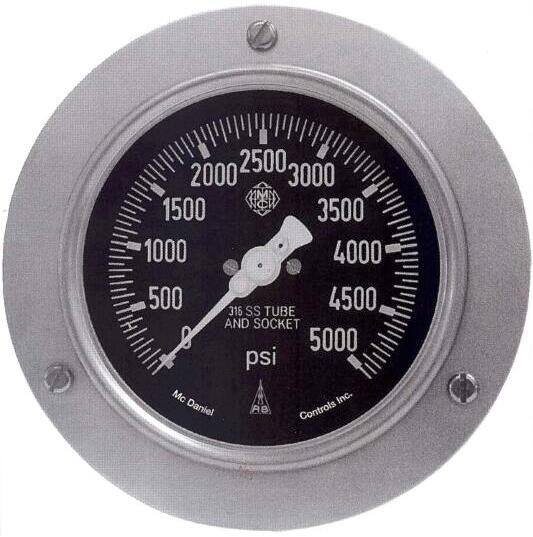

McDaniel Controls, Inc. Subsea pressure gauge海底压力表
简介
海底仪表-水下设备业务的扩展对优质海底仪表产生了需求。McDaniel海底压力表是任何需要可靠性和经验证性能的环境的选择。
Subsea Gauges - Expansion in the Subsea equipment business has created a demand for quality Subsea pressure gauges. The McDaniel Subsea pressure gauge is the best choice for any environment where dependability and proven performance is required.
当精确性和耐久性很重要时。When Accuracy and Durability Matters.
水下设备业务的扩展对优质的水下压力计提出了需求，这种压力计可以在10000英尺/3000米的海水深处完成工作。Expansion in the Subsea equipment business has created a demand for a quality Subsea pressure gauge which can be trusted to get the job done in depths up to 10,000 feet / 3,000 meters of sea water.
McDaniel Controls, Inc. Subsea Gauges海底仪表资料下载
McDaniel Controls，Inc.利用40年的压力表经验，制造出可靠的压力表，安装在一系列被送往各地海底的海底设备上。McDaniel Controls, Inc. using 40 years of gauge experience, created the most dependable pressure gauge for installation on an array of Subsea equipment being sent to the ocean floors around the world.
McDaniel海底压力表是任何需要可靠性和经验证性能的海底环境的选择。The McDaniel Subsea pressure gauge is the best choice for any Subsea environment where dependability and proven performance is required.
规格SPECIFICATIONS |
| 准确度Accuracy: |
0.5%满标度符合ASME B40.10.5% full scale to ASME B40.1
10000 PSI的标准（2A级）Standard (Grade 2A) up to 10,000 PSI
1.0%满标度15000 PSI及以上1.0% Full Scale 15,000 PSI and Above |
刻度盘Dial:
|
4“或6”黑色表盘，带有白色数字和标记，提高水下可读性。4" or 6” Black Dial with White Numbers and Markings for increased readability underwater. |
指针Pointer:
|
白色铝制可调指针。White Aluminum Adjustable Pointer. |
透镜Lens： 聚碳酸酯Polycarbonate
|
4〃尺寸：4 mm/.157英寸厚。4〃 Size: 4 mm/.157 inches thick.
6“尺寸：3 mm/。118英寸厚。6" Size: 3 mm/. 118 inches thick. |
压力范围Pressure Ranges:
|
0-15 PSI and 0-35,000 PSI |
100%甘油填充：100% Glycerin Filled:
|
**适用于较冷环境的甘油/水混合物**Glycerin/Water Mixtures Suitable for Colder
可根据要求提供温度。Temperatures Available On Request. |
案例Case:
|
304SS Liquid Filled
深度为0至10000英尺的压力密封。Pressure Tight for depths 0 to 10,000 Ft.
(3,000 Meters) of Sea Water. |
镜头边框：Lens Bezel:
|
304不锈钢304SS |
内部构件Internals:
|
316SS，重型移动均衡316SS with Heavy Duty Movement Equalizing
薄膜，机械超程停止。Membrane, Mechanical Over Range Stop. |
波登管：Bourdon Tube:
|
316不锈钢（C型600 PSI及以下）316 Stainless Steel (C Form 600 PSI & Below).
（螺旋800磅/平方英寸及以上）(Spiral 800 PSI & Above).
130%满标度，无精度损失130% Full-Scale Without Loss of Accuracy
300%满量程，无破裂300% Full-Scale Without Rupture |
阀杆和套筒：Stem and Socket:
|
316SS底部或下背部连接316SS Bottom or Lower Back Connected
Available In: (1/4"NPT, 1/2"NPT, 1/4"MPF, 1/4"HPF> |

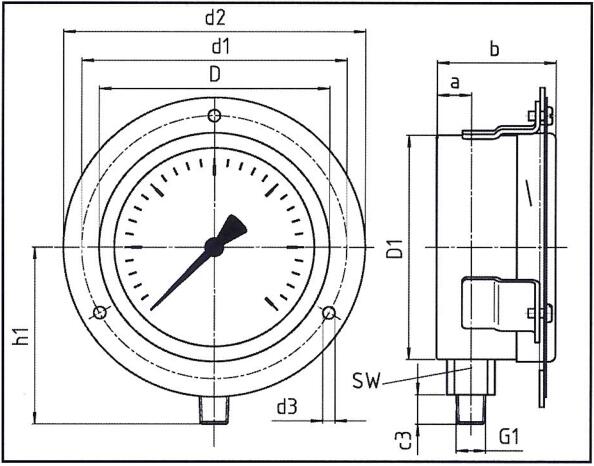

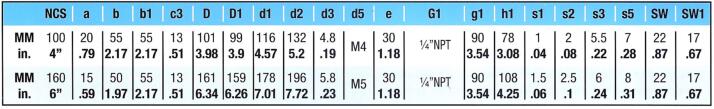

数据维度
|
