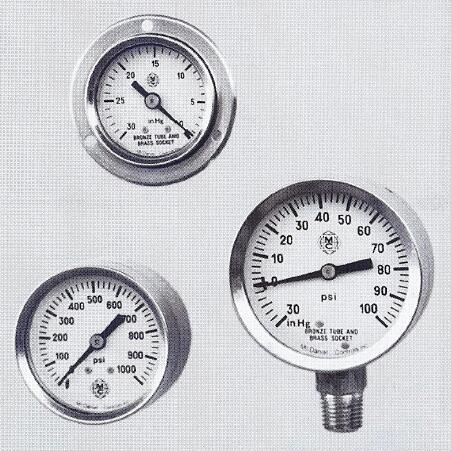

McDaniel Controls, Inc. Series 7 - Stainless Steel Case Utility Gauges 系列7-不锈钢外壳通用压力表
McDaniel 系列7-不锈钢外壳通用压力表Series 7 - Stainless Steel Case Utility Gauges
系列7-不锈钢外壳通用压力表-用于腐蚀性环境中的一般用途-经济型Series 7 - Stainless Steel Case Utility Gauges - for general service in corrosive environments - Economy priced
特征Features:
我们的系列7：带黄铜内件的通用不锈钢外壳压力表。适用于腐蚀性环境。包括用于抑制脉动的可拆卸进口限流器螺钉，对于注重价格的买方，详细规范，有限保修Our Series 7: General purpose stainless steel case utility gauges with brass internals. Designed for applications with a corrosive atmosphere. Includes removabe inlet port restrictor screw for pulsation dampening, For the price-conscious buyer , Detailed Specifications , Limited Warranty
McDaniel Controls, Inc. Series 7 - Stainless Steel Case Utility Gauges
系列7-不锈钢外壳通用压力表资料下载
模型
MODEL |
刻度盘大小
DIAL SIZE |
可填充
FILLABLE |
连接
CONNECTION |
案例
CASE |
内部构件
INTERNALS |
特征
FEATURES |
| R7 |
1 1/2 inch (40mm) |
No |
Options (1/8,1/4) |
304 Stainless Steel |
Brass/Bronze |
Utility 3-2-3% Accy |
| T7 |
2 inch (50mm) |
No |
Options (1/4,1/8) |
304 Stainless Steel |
Brass/Bronze |
Utility 3-2-3% Accy |
| J7 |
2 1/2 inch (63mm) |
No |
Options (1/4,1/8) |
304 Stainless Steel |
Brass/Bronze |
Utility 3-2-3% Accy |
Model R7
1 1/2" (40mm) Dial Size - Stainless Steel Case 1/8" NPT (1/4" NPT special order available)
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
1 1/2 inch (40mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/8" NPT (1/4"NPT special order available) |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
Brass/Bronze |
| Wetted parts: |
Copper alloy (C Form 600 psi & below).
Phosphorous bronze (Spiral 800 PSI & Above). |
| 准确度Accuracy: |
3-2-3% ASME B40.1-Grade B |
| 范围Ranges: |
Vac, Comp, Rec 3-15, up to 5,000 psi |
| 安装Mount: |

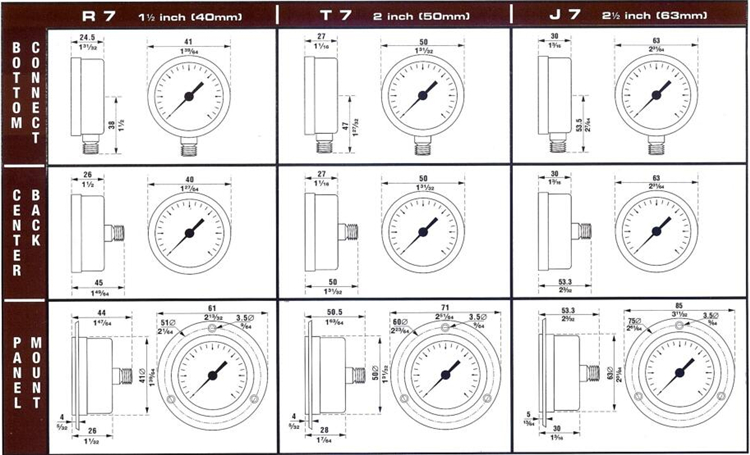

Standard Bottom Connection , L-Center Back Connection , L-Center back connection (without panel mount flange) , P-Panel Mount/center back connection , P-Panel mount w/front flange, Center-back connection |
| 比例尺Scale: |
B=psi/Bar(dual scale), K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2(cleaned for oxygen service) |
Model T7
2" (50mm) Dial Size - Stainless Steel Case 1/4" NPT or 1/8" NPT available
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 inch (50mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/4" or 1/8" NPT available |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
Brass/Bronze |
| Wetted parts: |
Copper alloy (C Form 600 psi & below).
Phosphorous bronze (Spiral 800 PSI & Above). |
| 准确度Accuracy: |
3-2-3% ASME B40.1 standard Grade B |
| 范围Ranges: |
Vac, Comp, Rec 3-15, up to 5,000 psi |
| 安装Mount: |
Standard Bottom Connection , L-Center Back Connection , P-Panel mount w/front flange, Center-back connection |
| 比例尺Scale: |
B=psi/Bar(dual scale), K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2(cleaned for oxygen service) |
Model J7
2 1/2" (63mm) Dial Size - Stainless Steel Case 1/4" NPT (1/8" NPT special order available)
| 标准和可选功能Standard and optional features |
| 刻度盘大小Dial size: |
2 1/2 inch (63mm) |
| 可填充：Fillable: |
No |
| 连接Connection: |
1/4" NPT (1/8" NPTspecial order available) |
| 案例Case: |
304 Stainless Steel |
| 内部构件Internals: |
Brass/Bronze |
| Wetted parts: |
Copper alloy (C Form 600 psi & below).
Phosphorous bronze (Spiral 800 PSI & Above). |
| 准确度Accuracy: |
3-2-3% ASME B40.1 standard Grade B |
| 范围Ranges: |
Vac, Comp, Rec 3-15, up to 15,000 psi |
| 安装Mount: |
Standard Bottom Connection , L-Center Back Connection , P-Panel mount w/front flange, Center-back connection |
| 比例尺Scale: |
B=psi/Bar(dual scale), K=psi/kPa(dual scale),psi/kg/cm2(dual scale) |
| 选项Options: |
O2(cleaned for oxygen service) |
|
